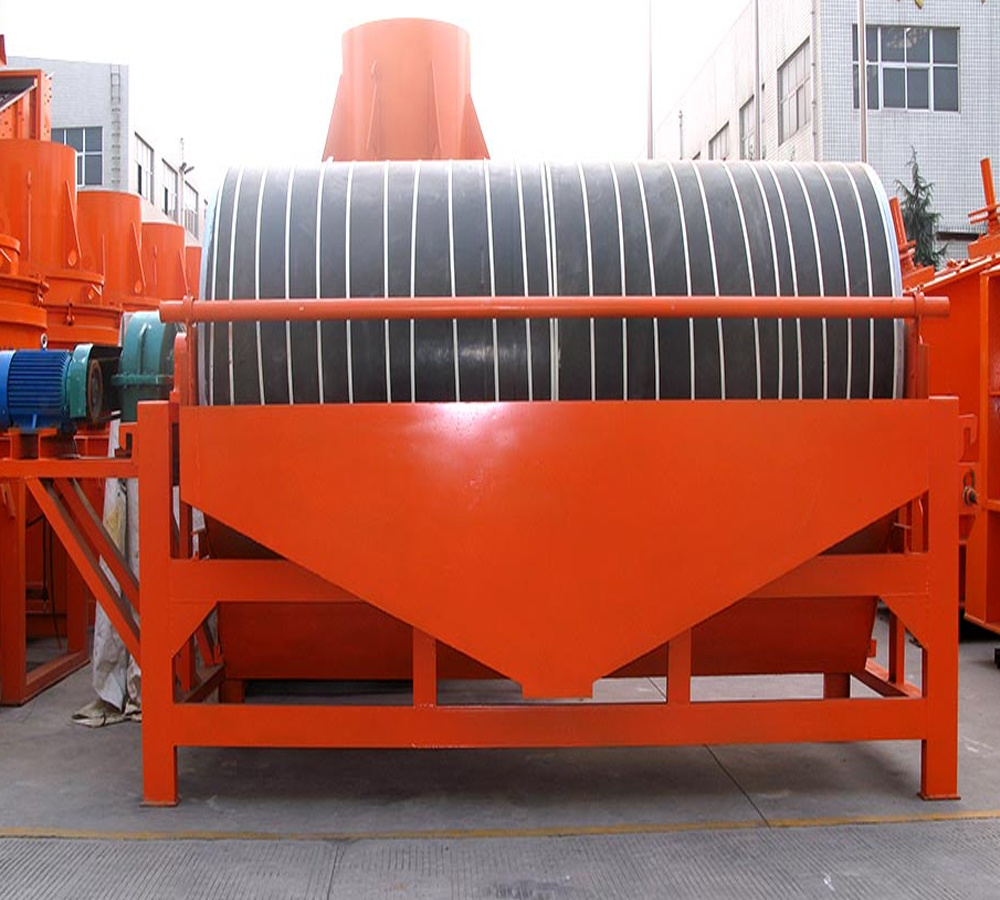

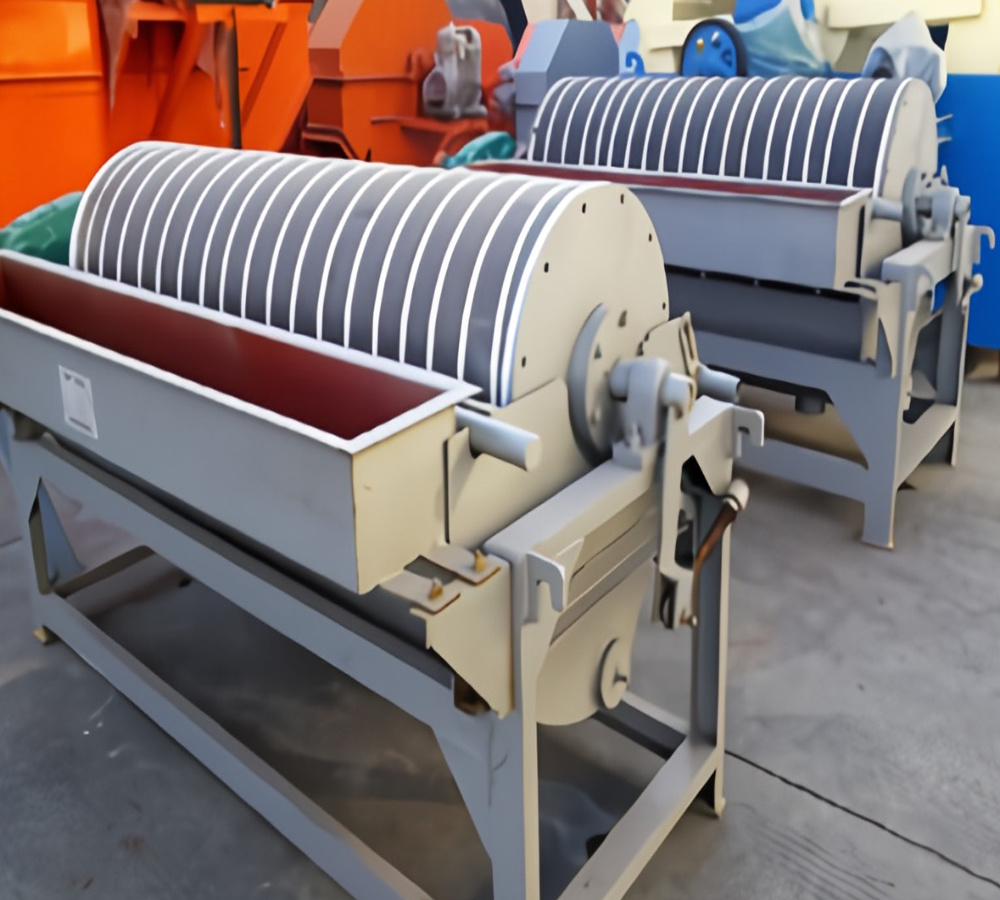

Magnetic separator

中国数码专业网站建设公司

The magnetic separator is suitable for the wet magnetic separation of magnetite, magnetic pyrite, roasted ore, ilmenite and other materials with particle size below 3mm, and also for the de-ironing operation of coal, non-metallic ores, building materials and other materials. The magnetic system of the magnetic separator is made of good quality ferrite material or compounded with rare earth magnets, with an average magnetic induction strength of 100-600MT. According to the needs of customers, various types of magnetic separators with different surface strengths, such as downstream, semi-countercurrent and countercurrent type. This product has the advantages of simple structure, large processing capacity, convenient operation and easy to repair. The magnetic separator is a device that separates the magnetic material in the mixture with the help of magnetic force and mechanical force by using the different specific magnetic coefficients of various minerals. It can be divided into dry magnetic separator and wet magnetic separator according to different operation modes.

公司简介

荣誉认证

厂房设备

Working principle

After the ore slurry flows into the tank through the feed box, the ore particles enter the feed area of the tank in a loose state under the action of the water flow from the feed jet pipe. Under the action of the magnetic field, the magnetic particles are magnetically agglomerated and form "magnetic clusters" or "magnetic chains". The "magnetic clusters" or "magnetic chains" are attracted to the cylinder by the magnetic force in the slurry and move towards the magnetic poles. As the polarity of the magnetic poles are alternately arranged along the direction of rotation of the cylinder and are fixed during operation, the "magnetic clusters" or "magnetic chain", when rotating with the cylinder, produces magnetic agitation due to the alternating magnetic poles and is entrapped in the " The non-magnetic minerals such as pebbles in the "magnetic cluster" or "magnetic chain" are dislodged in the turning, and the "magnetic cluster " or "magnetic chain" that is finally sucked on the surface of the cylinder is the concentrate. The concentrate is transferred with the cylinder to the edge of the magnetic system where the magnetic force is weak and is discharged into the concentrate tank by the rinsing water jet from the discharge hose. The non-magnetic or weakly magnetic minerals are left in the slurry and discharged out of the tank with the slurry, that is the tailings.

Product Performance

Good magnetic separation performance

Wide range of applications

high grade, low load

SPECIFICATION
