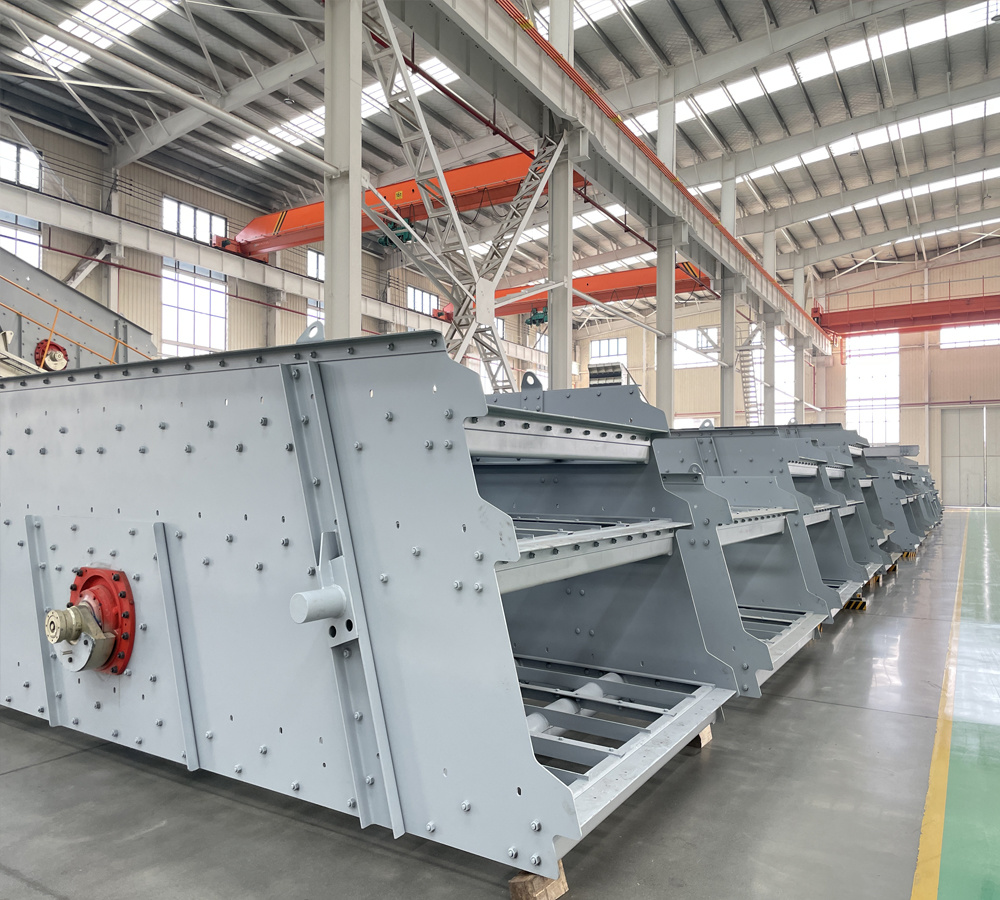

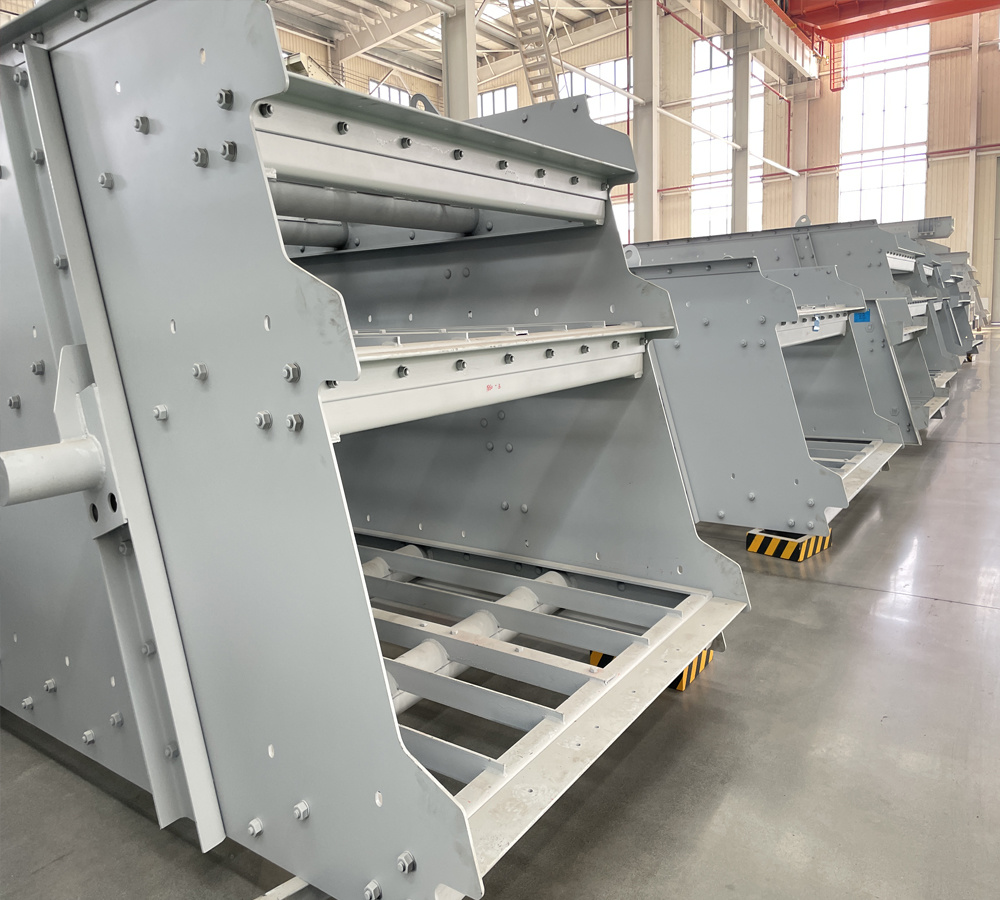

Circular Vibrating Screens

中国数码专业网站建设公司

Circular vibrating screen is a new type of vibrating screen with circular vibration, multi-layer and high efficiency. Circular vibrating screen adopts cylindrical eccentric shaft exciter and eccentric block to adjust the amplitude, long material screening drip line, screening specifications. Circular vibrating screen has reliable structures, strong excitation force and high screening efficiency. It is also low noise, sturdy and durable, easy to maintenance and safety. This vibrating screen is widely used in mining, building materials, transportation, energy, chemical and other industries for product classification. The vibrating screen is mainly composed of screen box, screen mesh, vibrator, vibration damping spring device, bottom frame and so on.

公司简介

荣誉认证

厂房设备

Working principle

The motor makes the eccentric block of the exciter rotate at a high speed through the V-belt. The running eccentric block generates a large centrifugal force, which excites the screen box to produce a circular motion with a certain amplitude, and the material on the screen is subjected to the impulse of the screen box on the inclined screen surface and produces a continuous throwing motion, and the material meets the screen surface in the process of making the particles smaller than the screen hole through the screen, so as to achieving classification.

Product Performance

Stable vibration source, strong excitation force

Long service life

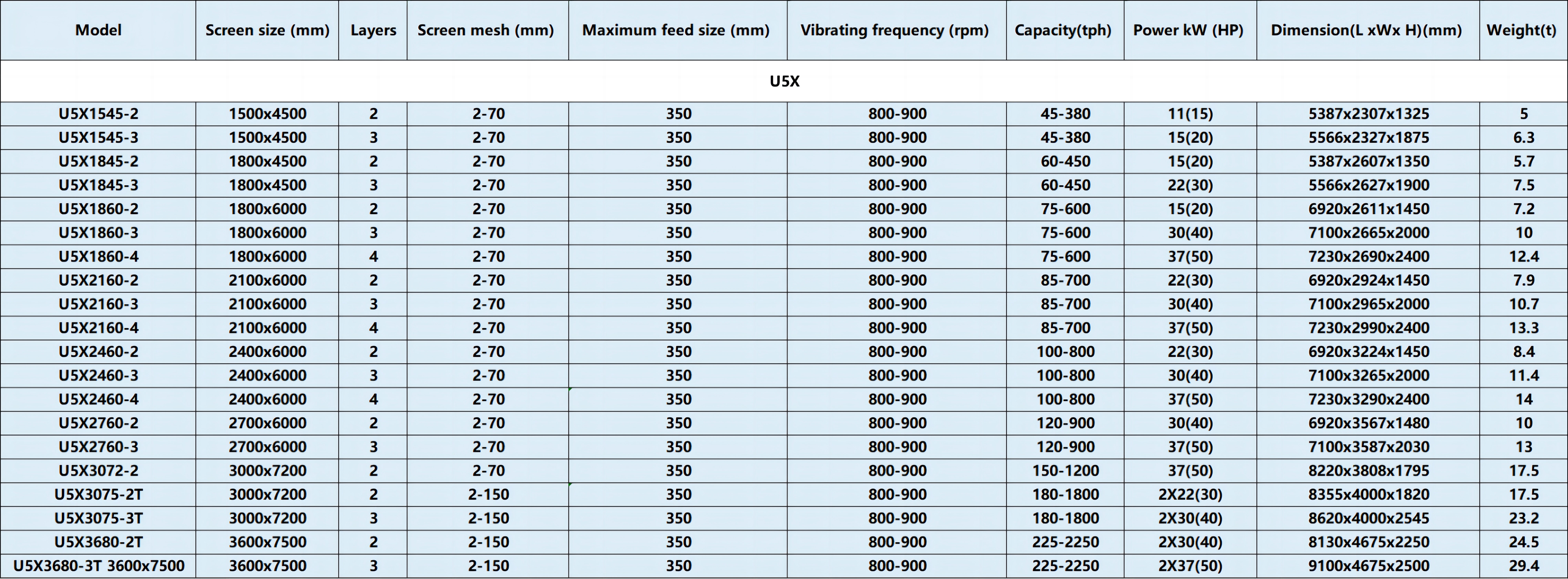

SPECIFICATION
